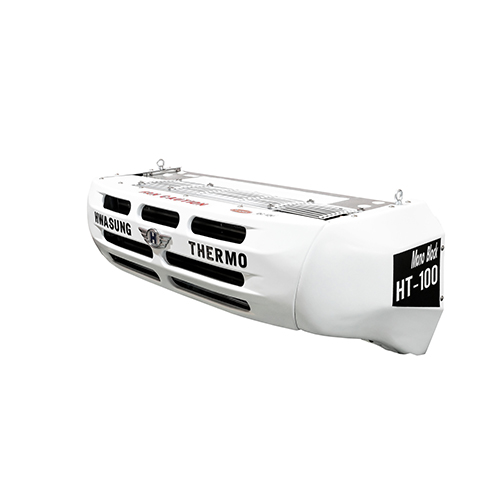

HT-100MB
| Application | Top-selling model for mini vans and compact trucks. |
|---|---|
| Design | Outstanding durability with ABS COVER and advanced aerodynamic design. |
| Performance | High-quality components and excellent refrigeration capacity. |
| Service | Easy installation and low maintenance costs. |
| User-friendly | Equipped with a microprocessor-based controller as standard. |
| Option | Easy installation and low maintenance costs. |
| Cooling Capacity | Temperature | HT-100MB / HT-100MBESC | |||||
| Road | Electric | ||||||
30℃(86℉) Ambient under ATP Standard | R-404A | ℃ | kcal/h | watt | kcal/h | watt | |
| 0 | 3,528 | 4,103 | 2,999 | 3,488 | |||
| -10 | 2,639 | 3,069 | 2,243 | 2,609 | |||
| -20 | 1,733 | 2,015 | 1,473 | 1,713 | |||
| Engine Compressor | Model | TM-15 | |||||
| No. of Cylinder | 6 | ||||||
| Displacement (cm3) | 147 | ||||||
| Refrigerant | R-404A 1.5KG | ||||||
| Airflow Volume @ 0 Pa Static Pressure | 1540m³/h | ||||||
| DC Voltage Option | DC 12V /DC 24V | ||||||
| ELECTRIC STANDBY | Power | 220/380/415V, 3P, 50/60Hz | |||||
| Output | 3kW(4HP) | ||||||
| Defrost | Automatic hot gas defrost initiated & terminated by cab controller | ||||||
Size(LxWxH)/mm & Weight/kg | MB 시리즈 | 1416X63X520 | |||||
| Cab control | 105X75X48 | ||||||
| 중량(kg) | 80 | 125 | |||||
| Product Features |
|---|
|
