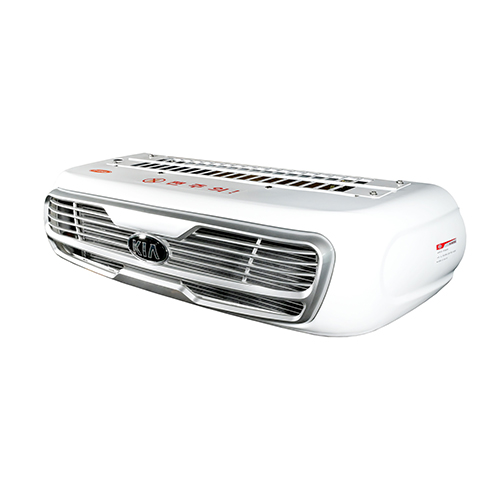

HT-100 KIA
| Application | Top-selling model for mini vans and compact trucks. |
|---|---|
| Design | Outstanding durability with ABS COVER and advanced aerodynamic design. |
| Performance | High-quality components and excellent refrigeration capacity. |
| Service | Easy installation and low maintenance costs. |
| User-friendly | Equipped with a microprocessor-based controller as standard. |
| Option | Easy installation and low maintenance costs. |
| Cooling Capacity | Temperature | HT-100 KIA | |||
| Road | |||||
30℃(86℉) Ambient under ATP Standard | R-404A | ℃ | kcal/h | watt | |
| 0 | 3,122 | 3,631 | |||
| -10 | 2,335 | 2,716 | |||
| -20 | 1,534 | 1,784 | |||
| Engine Compressor | Model | TM-15 | |||
| No. of Cylinder | 6 | ||||
| Displacement (cm3) | 147 | ||||
| Refrigerant | R-404A 1.5KG | ||||
| Airflow Volume @ 0 Pa Static Pressure | 1300 | ||||
| DC Voltage Option | DC 12V /DC 24V | ||||
| ELECTRIC STANDBY | Power | ||||
| Output | |||||
| Defrost | Automatic hot gas defrost initiated & terminated by cab controller | ||||
Size(LxWxH)/mm & Weight/kg | Condenser | 1097*400*270(22) | |||
| Evaporator | 1040*669*168(25) | ||||
| Cab control | 105X75X48 | ||||
| Product Features |
|---|
|
