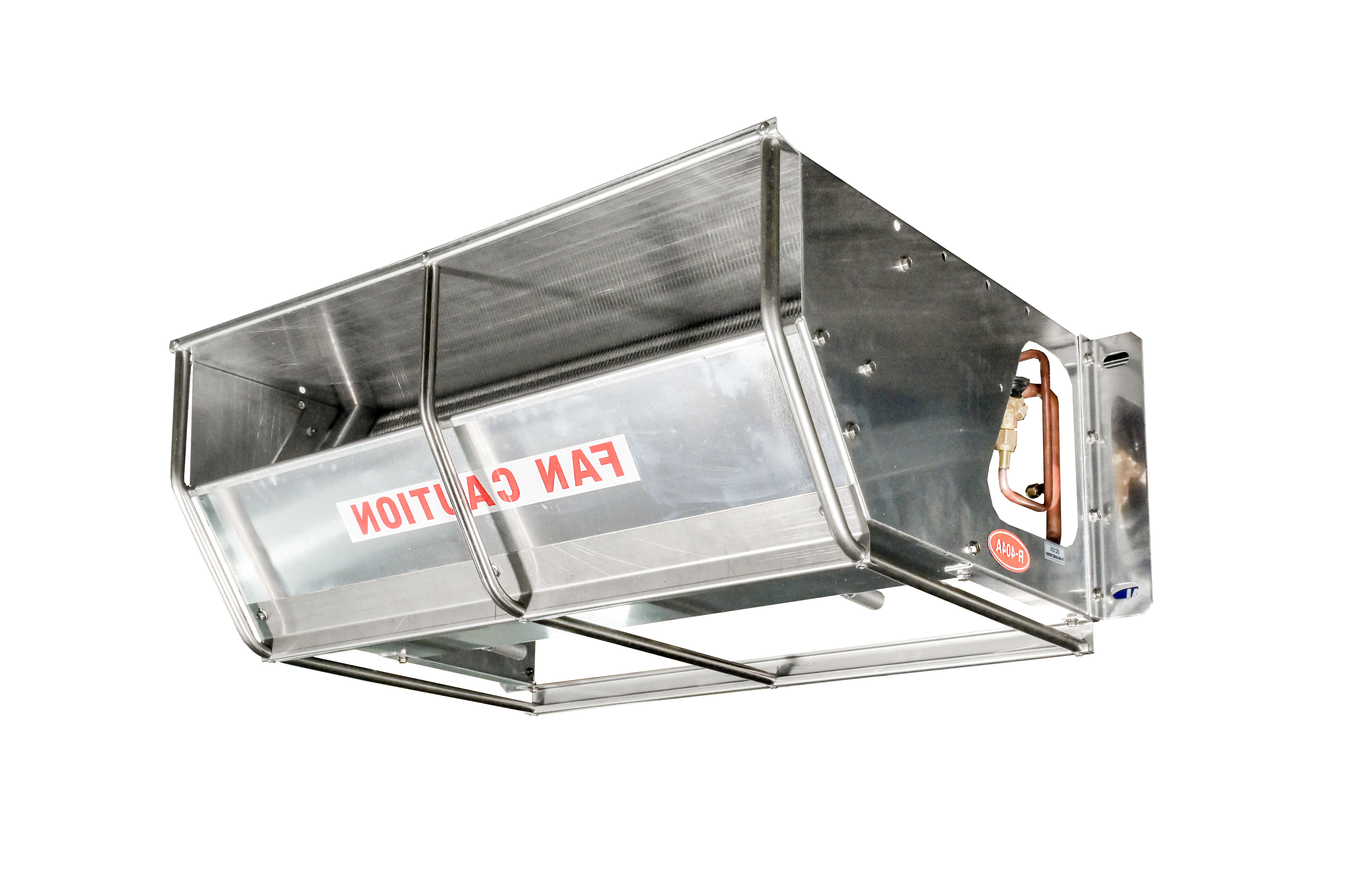

HT-350A (250 III) 증발기

HT-350A (250 III) 증발기
product information
Application Top-selling model for mid-sized trucks.
Design Advanced aerodynamic design of durable ABS cover
Performance High-quality components and excellent refrigeration capacity.
Service Easy installation and low maintenance costs.
User-friendly Equipped with a microprocessor-based controller as standard.
Option Easy installation and low maintenance costs.



Cooling CapacityTemperatureHT-250 III (350A) / ESC
RoadElectric
30℃(86℉) Ambient
  under ATP Standard
R-404Awattwatt
05,0033,470
-202,4301,573
Engine CompressorModelTM16
No. of Cylinder6
Displacement (cm3)163
RefrigerantR-404A / 1.8KG
Airflow Volume @ 0 Pa Static Pressure1964
DC Voltage OptionDC 12V /DC 24V
ELECTRIC STANDBYPower380V-400V /3P / 50Hz
Size(LxWxH)/mm
 & Weight/kg
Condenser1295X542X400(31)
Condenser (ESC)1295X542X400(95)
Evaporator1200X689X170(29)
Cab control105X75X48
Product Features
Product Features
  • 중형 트럭용 A 시리즈
  • 컴팩트한 디자인의 R-134a / R-404a / R-452a 용 냉장 / 냉동기
  • 차량엔진으로 컴프레서 가동
