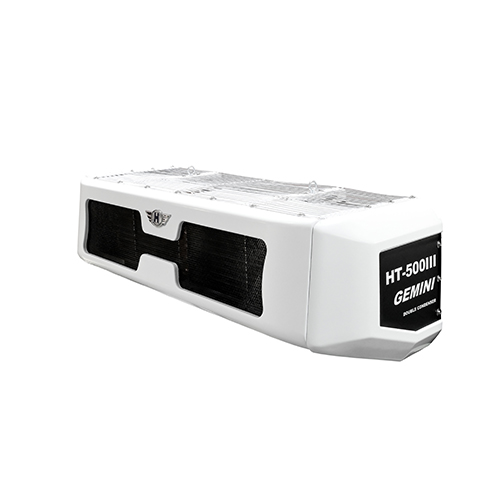

HT-500 III GEMINI
| Application | Perfect performance for mid-sized trucks |
|---|---|
| Design | Advanced aerodynamic design of durable ABS cover |
| Performance | High capacity with high-quality components |
| Service | Easy installation and low maintenance cost |
| User-friendly | Microprocessor based in-cab controller |
| Option | Hot gas heating system Multi-temperature system TM21 available for high capacity |
| Cooling Capacity | Temperature | HT-500 III GEMINI | |||
| Road | |||||
30℃(86℉) Ambient under ATP Standard | R-404A | ℃ | kcal/h | watt | |
| 0 | 10,200 | 11,862 | |||
| -10 | 7,422 | 8,632 | |||
| -20 | 4,942 | 5,748 | |||
| Engine Compressor | Model | TM-16/TM-21 두대 | |||
| No. of Cylinder | 12 | ||||
| Displacement (cm3) | 326 | ||||
| Refrigerant | R-404A(TM-16) 4.6KG/(TM-21) 5KG | ||||
| Airflow Volume @ 0 Pa Static Pressure | 4600 | ||||
| DC Voltage Option | DC 12V /DC 24V | ||||
| ELECTRIC STANDBY | Power | ||||
| Output | |||||
| Defrost | Automatic hot gas defrost initiated & terminated by cab controller | ||||
Size(LxWxH)/mm & Weight/kg | Condenser | 1717X643X571(96) | |||
| Evaporator(Slim) | 1530X682X170(45) | ||||
| Evaporator(STD) | |||||
| Cab control | 105X75X48 | ||||
| Product Features |
|---|
|
