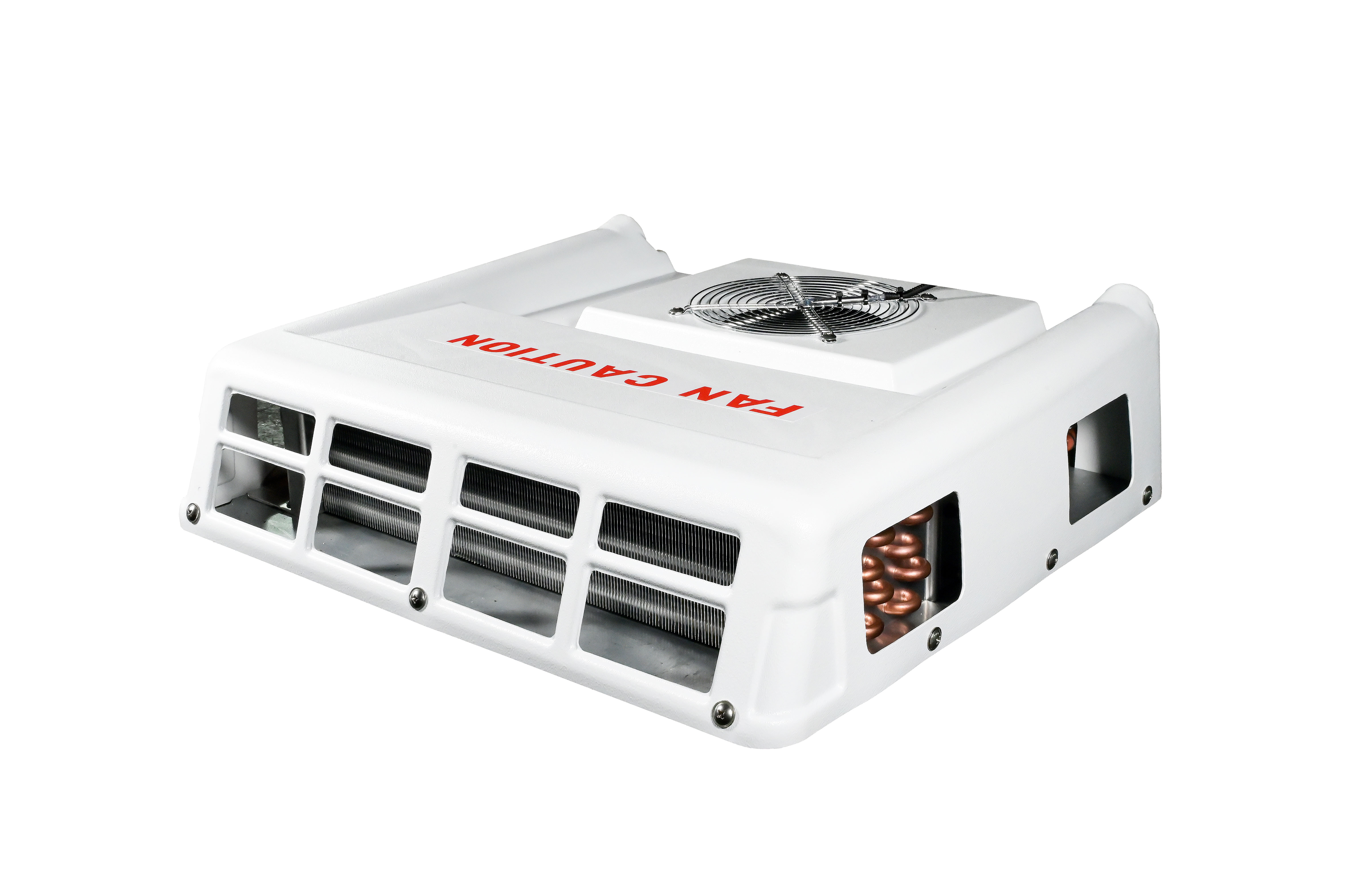

EVAPORATOR, HT-050MINI
| Application | Top-selling model for mini vans and compact trucks. |
|---|---|
| Design | Outstanding durability with ABS COVER and advanced aerodynamic design. |
| Performance | High-quality components and excellent refrigeration capacity. |
| Service | Easy installation and low maintenance costs. |
| User-friendly | Equipped with a microprocessor-based controller as standard. |
| Option |
| Cooling Capacity | Temperature | HT-050MINI | |||
| Road | |||||
30℃(86℉) Ambient under ATP Standard | R-404A | ℃ | kcal/h | watt | |
| 0 | 1625 | 1890 | |||
| -10 | - | - | |||
| -20 | - | - | |||
| Engine Compressor | Model | SD5H11 | |||
| No. of Cylinder | 5 | ||||
| Displacement (cm³) | 108 | ||||
| Refrigerant | R-134A 1.2KG | ||||
| Airflow Volume @ 0 Pa Static Pressure | 1100m³/h | ||||
| DC Voltage Option | |||||
| Defrost | - | ||||
Size(LxWxH)/mm & Weight/kg | CAPACITOR | 722X385X188(15) | |||
| EVA | 650X59X177(21) | ||||
| controller | 145X80X57 | ||||
| Product Features |
|---|
|
