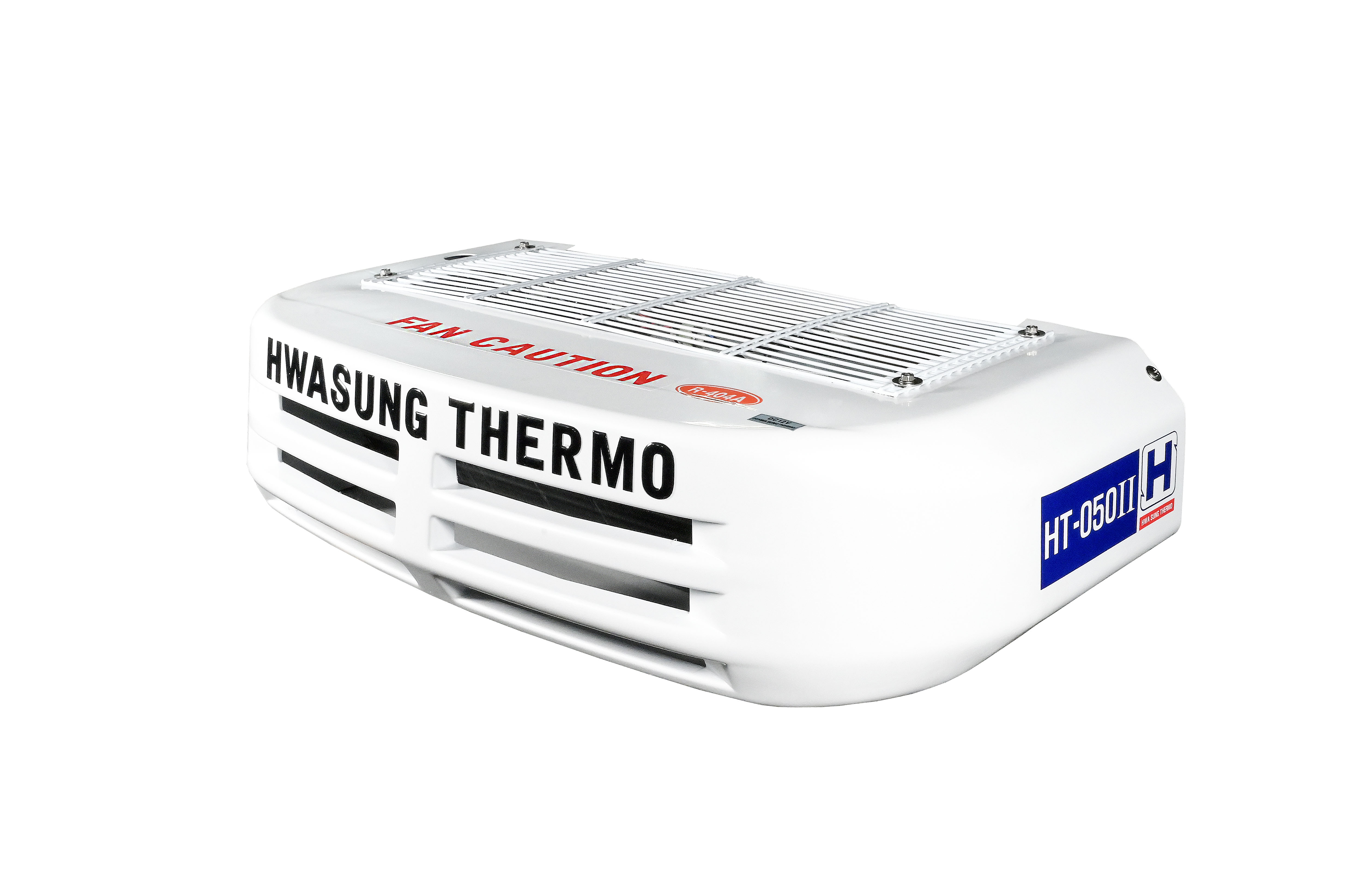

HT-050 II
| Application | Top-selling model for mini vans and compact trucks. |
|---|---|
| Design | Outstanding durability with ABS COVER and advanced aerodynamic design. |
| Performance | High-quality components and excellent refrigeration capacity. |
| Service | Easy installation and low maintenance costs. |
| User-friendly | Equipped with a microprocessor-based controller as standard. |
| Option | Hot gas heating system. |
| Cooling Capacity | Temperature | HT-050 II | |||
| Road | |||||
30℃(86℉) Ambient under ATP Standard | R-404A | ℃ | kcal/h | watt | |
| 0 | 1,789 | 2,081 | |||
| -10 | 1,447 | 1,683 | |||
| -20 | 989 | 1,150 | |||
| Engine Compressor | Model | TM-13 | |||
| No. of Cylinder | 6 | ||||
| Displacement (cm³) | 131 | ||||
| Refrigerant | R-404A 1.2KG/R-134 1.2KG | ||||
| Airflow Volume @ 0 Pa Static Pressure | 785m³/h | ||||
| DC Voltage Option | DC 12V /DC 24V | ||||
| Defrost | Automatic hot gas defrost initiated & terminated by cab controller | ||||
Size(LxWxH)/mm & Weight/kg | CAPACITOR | 960X515X220(22) | |||
| EVA | 840X629X163(20) | ||||
| CONTROLLER | 105X75X48 | ||||
| Product Features |
|---|
|
