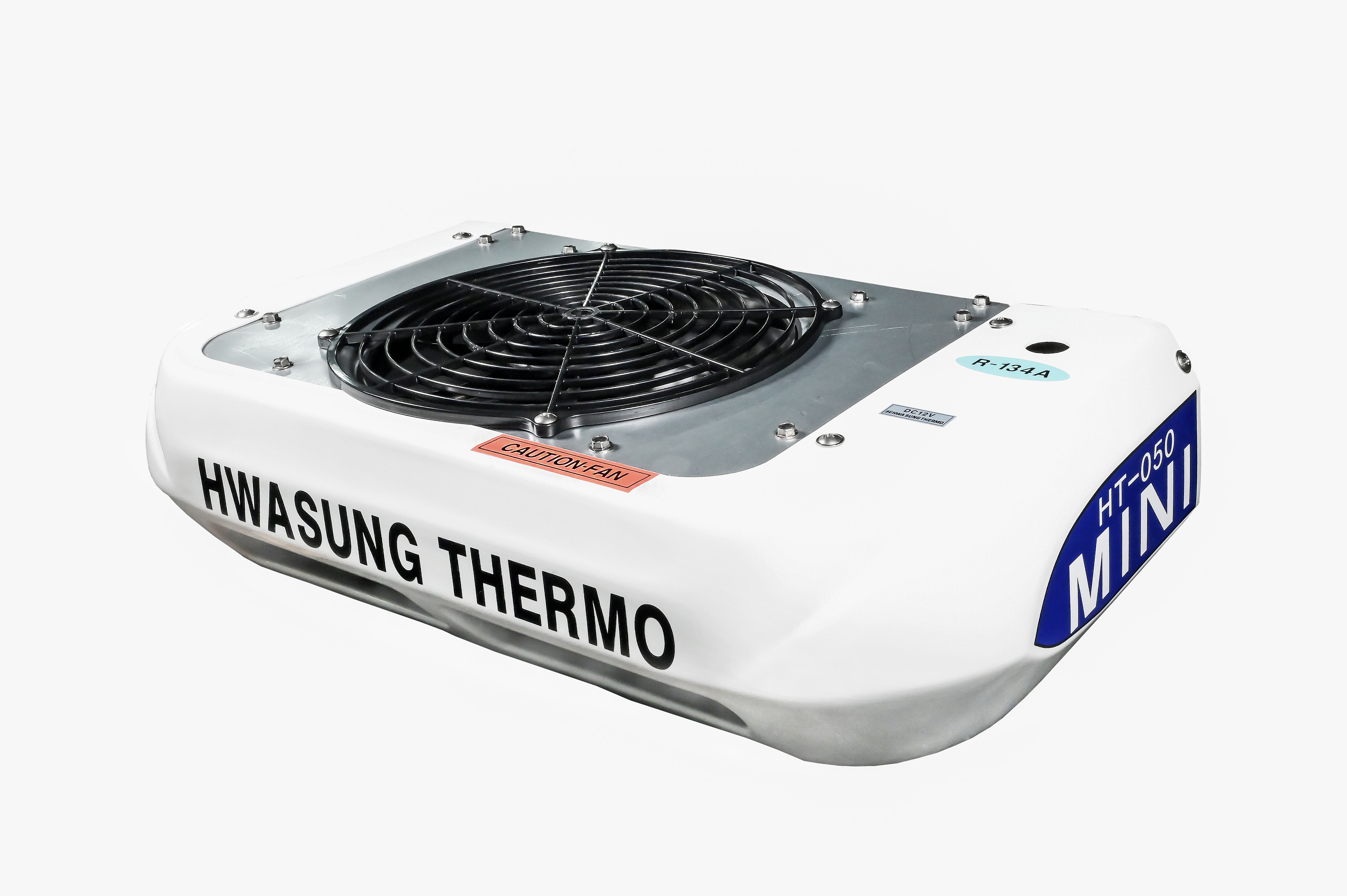

HT-050MINI
| Application | Top-selling model for mini vans and compact trucks. |
|---|---|
| Design | Outstanding durability with ABS COVER and advanced aerodynamic design. |
| Performance | High-quality components and excellent refrigeration capacity. |
| Service | Easy installation and low maintenance costs. |
| User-friendly | Equipped with a microprocessor-based controller as standard. |
| Option |
| Cooling Capacity | Temperature | HT-050MINI | ||
|---|---|---|---|---|
| Road | ||||
30℃(86℉) Ambient under ATP Standard | R-404A | ℃ | kcal/h | watt |
| 0 | 1625 | 180 | ||
| -10 | - | - | ||
| -20 | - | - | ||
| Engine Compressor | Model | SD5H11 | ||
| No. of Cylinder | 5 | |||
| Displacement (cm³) | 108 | |||
| Refrigerant | R-134A 1.2KG | |||
| Airflow Volume @ 0 Pa Static Pressure | 1100m³/h | |||
| DC Voltage Option | ||||
| Defrost | - | |||
Size(LxWxH)/mm & Weight/kg | CAPACITOR | 722X385X188(15) | ||
| EVA | 650X59X177(21) | |||
| CONTROLLER | 145X80X57 | |||
| Product Features |
|---|
|
