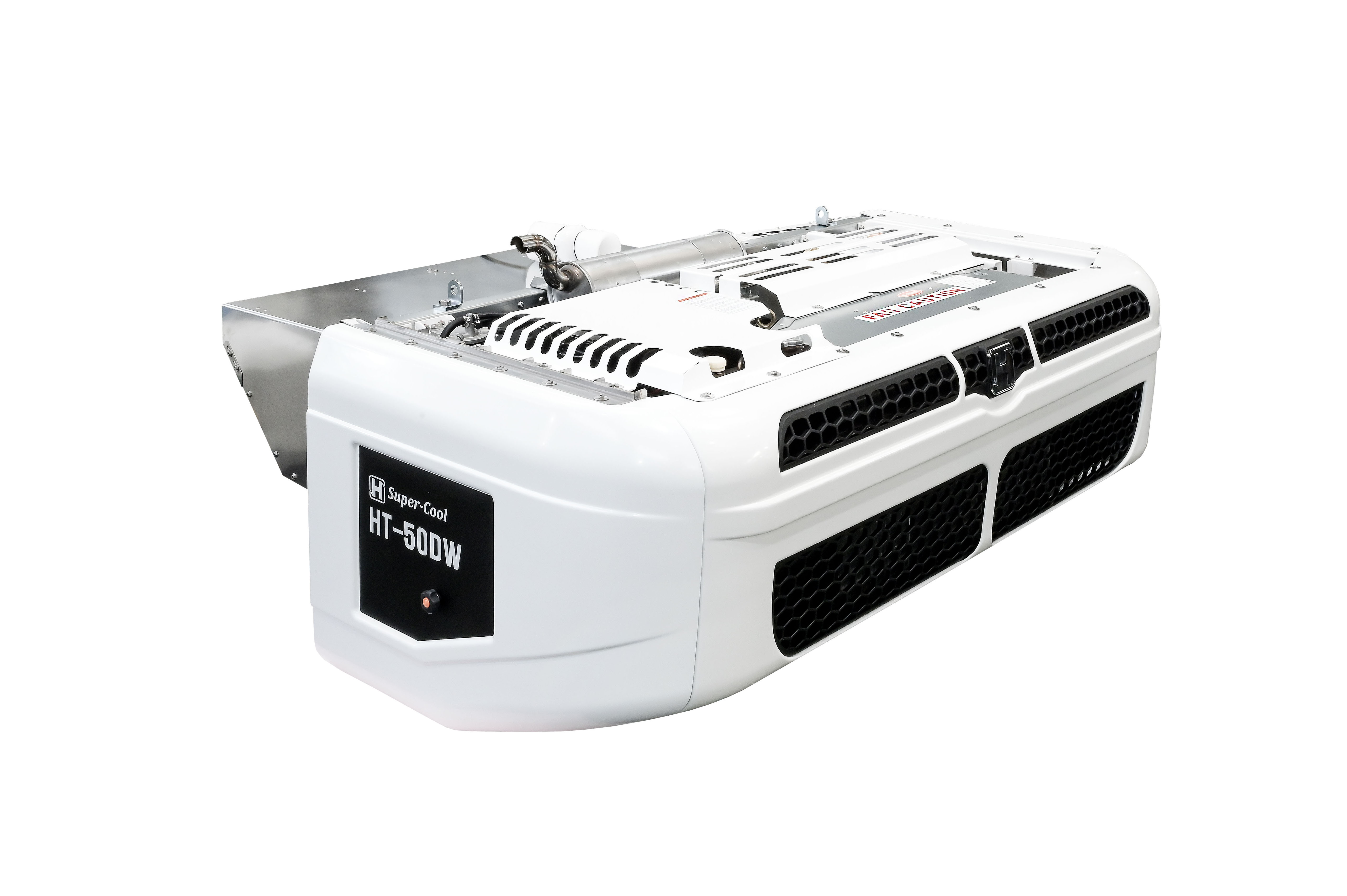

HT-50DW II SUPER-COOL
| Application | Exellent performance for heavy trucks |
|---|---|
| Design | Specially designed for high capacity and extreme condition |
| Performance | High-quality components for the best performance |
| Service | Low maintenance cost |
| User-friendly | Microprocessor based in-cab controller |
| Option | Multi-temperature system |
| Cooling Capacity | Temperature | HT-50DW/50DWES | |||||
| Road | Electric | ||||||
| 30℃(86℉) Ambient under ATP Standard | R-404A | ℃ | kcal/h | watt | kcal/h | watt | |
| 0 | 5,100 | 5,931 | 4,079 | 4,744 | |||
| -20 | 2,471 | 2,874 | 1,977 | 2,299 | |||
| Engine speed | 1685rpm | ||||||
| Diesel Engine | Model | Yanmar 3TNV76 | |||||
| No. of Cylinder | 3 | ||||||
| Displacement (cm3) | 1,116 | ||||||
| Oil charge | 8.7 | ||||||
| Emgine compressor | Model | Bock FKX30_390TK | |||||
| No. of Cylinder | 4 | ||||||
| Displacement (cm3) | 385 | ||||||
| Refrigerant | R-404A/5.8KG | ||||||
| Airflow Volume @ 0 Pa Static Pressure | 2,981m³/h | ||||||
| ELECTRIC STANDBY | Power | 220/380/415V, 3P, 50/60Hz | |||||
| Output | 7.5kW(10HP) | ||||||
| Defrost | Automatic hot gas defrost & termination by microperocessor / Air switch | ||||||
| Size(LxWxH)/mm & Weight/kg | Condenser | 1910X899X665 | |||||
| Evaporator | 1200X820X410 | ||||||
| Weight(kg) | 522 | 570 | |||||
