GT-1200 RENATUS
| For trucks and trailers GT-1200 | |||||
| * Hitachi Inverter Compressor | Compressor speed control by HITACHI inverter. | ||||
| * Engine downsizing[YANMAR 3TNV82 -> 3TNV76] | Cooling capacity improvement through engine downsizing. | ||||
| * Fuel savings through improved efficiency [3.8L -> 2.5L] | Fuel savings. | ||||
| * Advanced Technology-Enabled Electrical System Unit | High performance, reliability, and efficiency, automatic control capability, electronic expansion valve, BLDC motor. | ||||

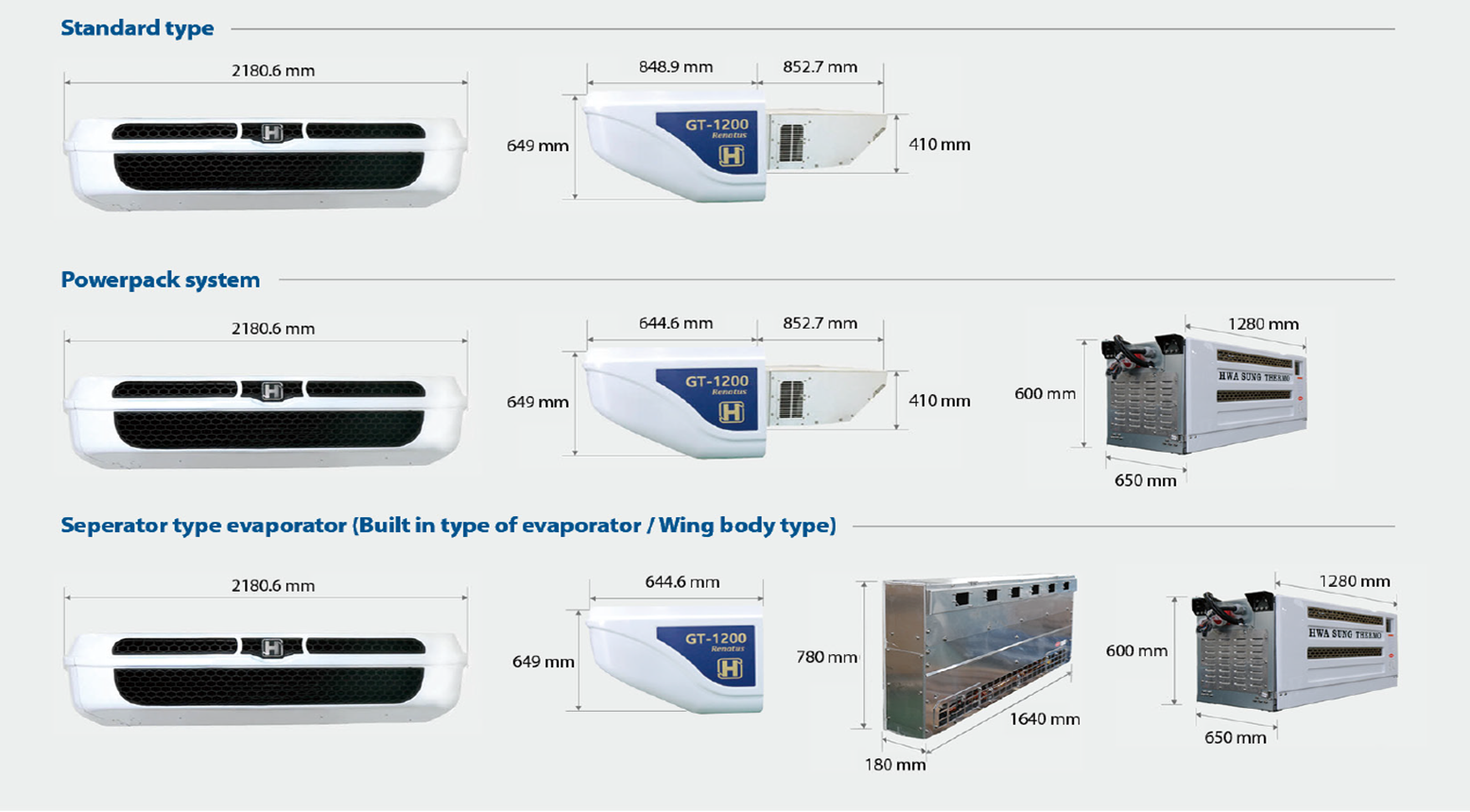

| * Model category | Choose one of three available options (standard, power pack, or built-in EVA). | ||||
| * Other major parts manufacturing is made by Hwaseong Thermo Co., Ltd | Low maintenance costs. | ||||
| * Convenient Monitoring via WI-FI Mobile Device | Easy diagnosis via WI-FI and prompt actions for potential issues. | ||||
| * Environmentally Designed Unit | Reduction in fuel consumption and carbon dioxide emissions. | ||||
| * Low noise, minimal vibration, and high durability | A simple, beltless design structure with fewer components. | ||||
| *GT-1200 타입 |
| Cooling Capacity | Temperature | GT-1000 / GTE-1000 | GT-1200 / GTE-1200 | ||
| 30℃(86℉) Ambient under ATP Standard | R-404A | ℃ | watt | watt | |
| 0 | 6,000 | 10,634 | |||
| -10 | 5,344 | 9,022 | |||
| -20 | 3,256 | 6,107 | |||
| Diesel Engine | Yanmar 3TNV70 NBK | Yanmar 3TNV76 | |||
| Generator | 220V / 3P | 220V / 3P | |||
| Compressor | 220V / 3P, Scroll compressor | 220V / 3P, Scroll compressor | |||
| Inverter | 220V / 3P | 220V / 3P | |||
| Expansion valve | Electronic expansion valve | Electronic expansion valve | |||
| Condenser, Evaporator, Fan, Motor | BLDC motor | BLDC motor | |||
| Weight(kg) | 450 | 525 | |||
| Refrigerant | R404A, 6.0KG | R404A, 7.2KG | |||
| Airflow Volume @ 0 Pa Static Pressure | 4,000m³/h | 4,000m³/h | |||
| Fuel consumption | 2.0L/h | 2.5L/h | |||
| Product Features |
|---|
|
|
