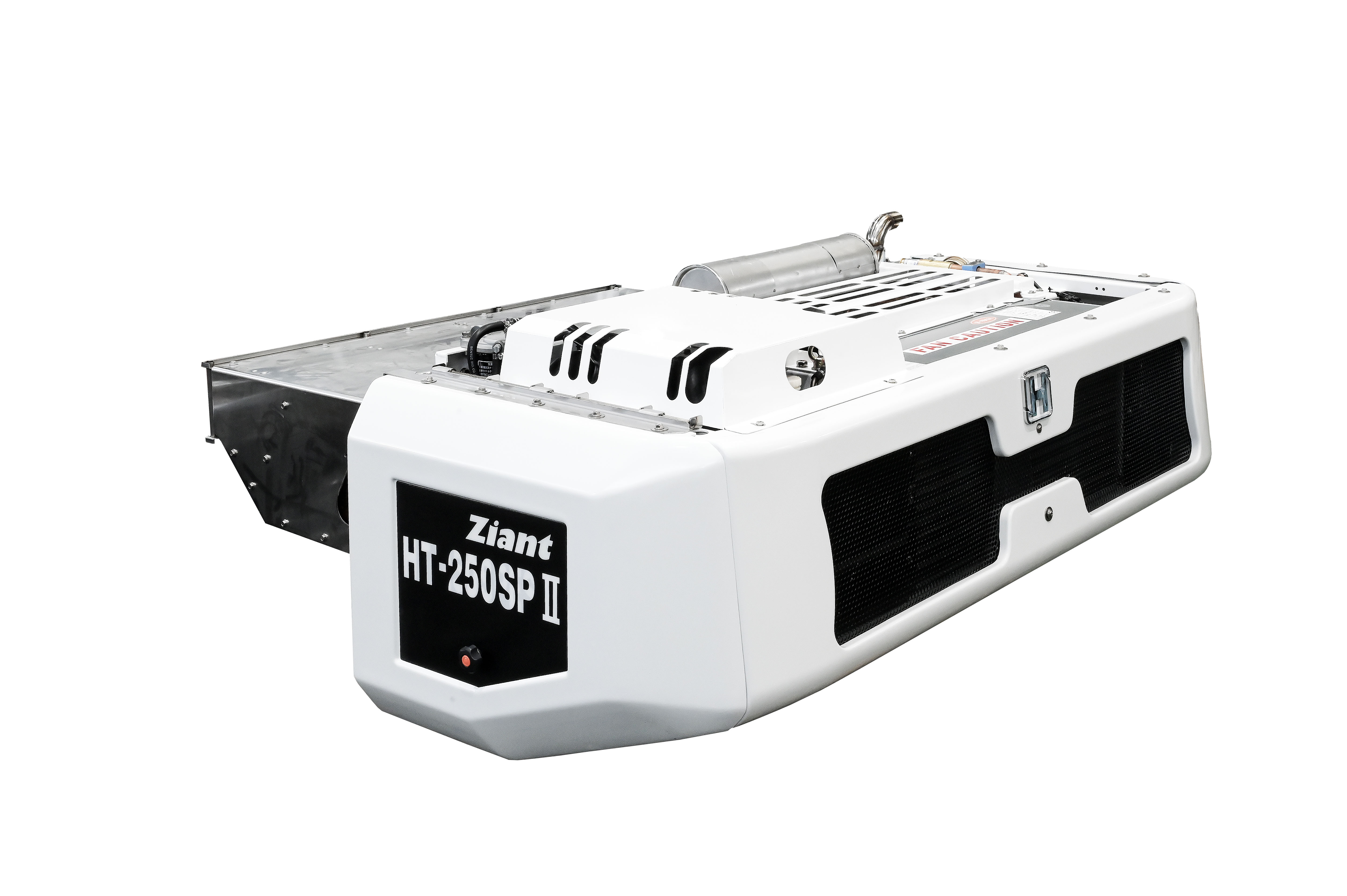

HT-250SPES II ZIANT
| Application | Exellent performance for heavy trucks |
|---|---|
| Design | Specially designed for high capacity and extreme condition |
| Performance | High-quality components for the best performance |
| Service | Low maintenance cost |
| User-friendly | Microprocessor based in-cab controller |
| Option | Multi-temperature system |
| Cooling Capacity | Temperature | HT-250SP II/250SPES II | |||||
| Road | Electric | ||||||
| 30℃(86℉) Ambient under ATP Standard | R-404A | ℃ | kcal/h | watt | kcal/h | watt | |
| 0 | 4,987 | 5,800 | 3,755 | 4,367 | |||
| -20 | 2,773 | 3,225 | 2,107 | 2,450 | |||
| Engine speed | 1820rpm | ||||||
| Diesel Engine | Model | Yanmar 3TNV70 | |||||
| No. of Cylinder | 3 | ||||||
| Displacement (cm3) | 854 | ||||||
| Oil charge | 6 | ||||||
| Emgine compressor | Model | Bock FKX30_235TK | |||||
| No. of Cylinder | 2 | ||||||
| Displacement (cm3) | 233 | ||||||
| Refrigerant | R-404A/2.8KG | ||||||
| Airflow Volume @ 0 Pa Static Pressure | 2,561m³/h | ||||||
| ELECTRIC STANDBY | Power | 220/380/415V, 3P, 50/60Hz | |||||
| Output | 3.8kW(5HP) | ||||||
| Defrost | Automatic hot gas defrost & termination by microperocessor / Air switch | ||||||
| Size(LxWxH)/mm & Weight/kg | Condenser | 1790X668X555 | |||||
| Evaporator | 1200X658X305 | ||||||
| Weight(kg) | 398 | 426 | |||||
