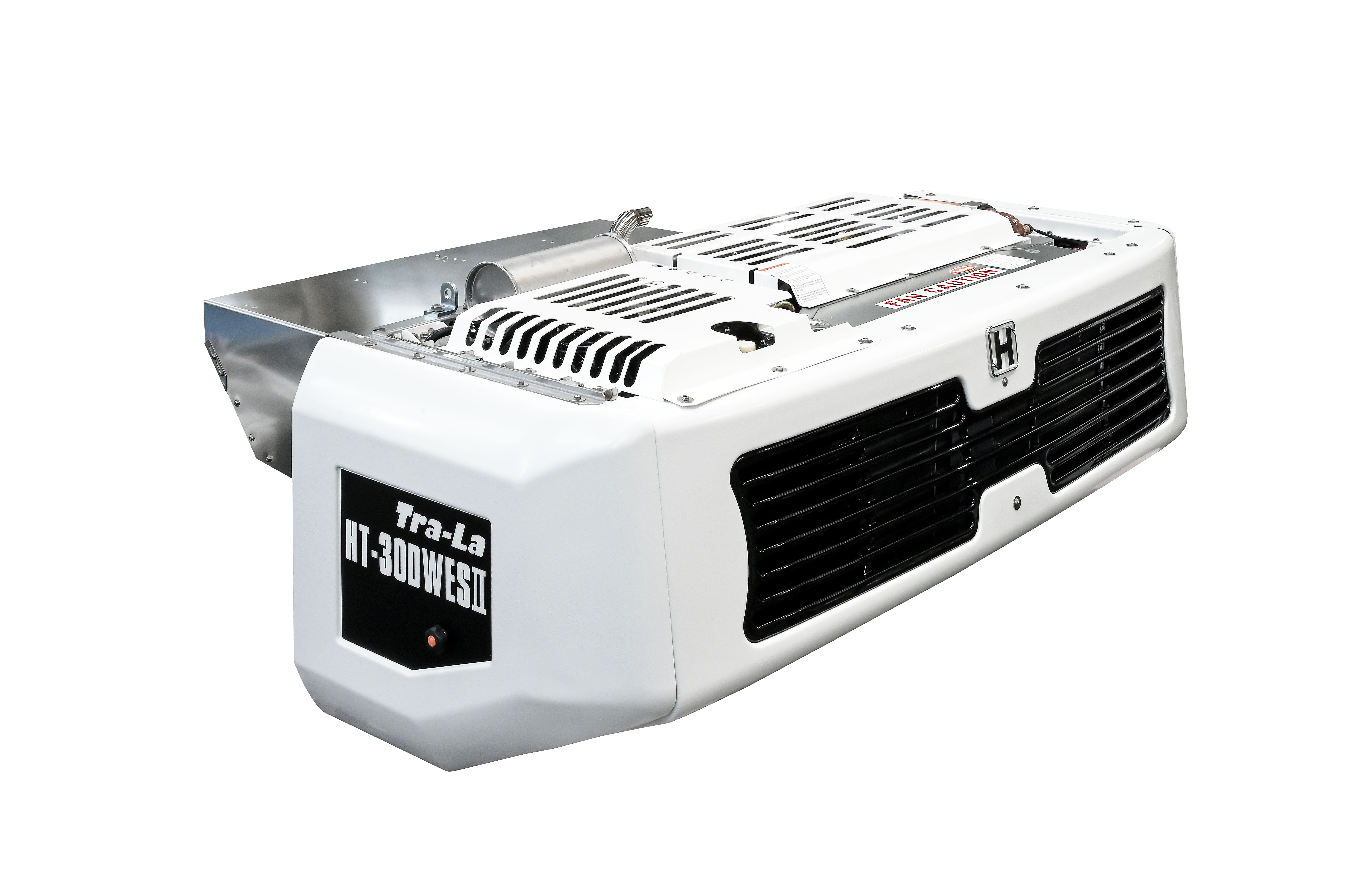

HT-30DWES II TRA-RA
| Cooling Capacity | Temperature | HT-30DW II/ 30DWES II | |||||
| Road | Electric | ||||||
| 30℃(86℉) Ambient under ATP Standard | R-404A | ℃ | kcal/h | watt | kcal/h | watt | |
| 0 | 5,100 | 5,931 | 4,079 | 4,744 | |||
| -20 | 2,471 | 2,874 | 1,977 | 2,299 | |||
| Engine speed | 2200rpm | ||||||
| Diesel Engine | Model | Yanmar 3TNV76 | |||||
| No. of Cylinder | 3 | ||||||
| Displacement (cm3) | 1,116 | ||||||
| Oil charge | 8.7 | ||||||
| Emgine compressor | Model | Bock FKX30_275TK | |||||
| No. of Cylinder | 2 | ||||||
| Displacement (cm3) | 277 | ||||||
| Refrigerant | R-404A/5.3KG | ||||||
| Airflow Volume @ 0 Pa Static Pressure | 2,810m³/h | ||||||
| ELECTRIC STANDBY | Power | 220/380/415V, 3P, 50/60Hz | |||||
| Output | 5.6kW(7.5HP) | ||||||
| Defrost | Automatic hot gas defrost & termination by microperocessor / Air switch | ||||||
| Size(LxWxH)/mm & Weight/kg | Condenser | 1910X690X645 | |||||
| Evaporator | 1200X744X330 | ||||||
| Weight(kg) | 471 | 506 | |||||
| Product Features |
|---|
|
|
