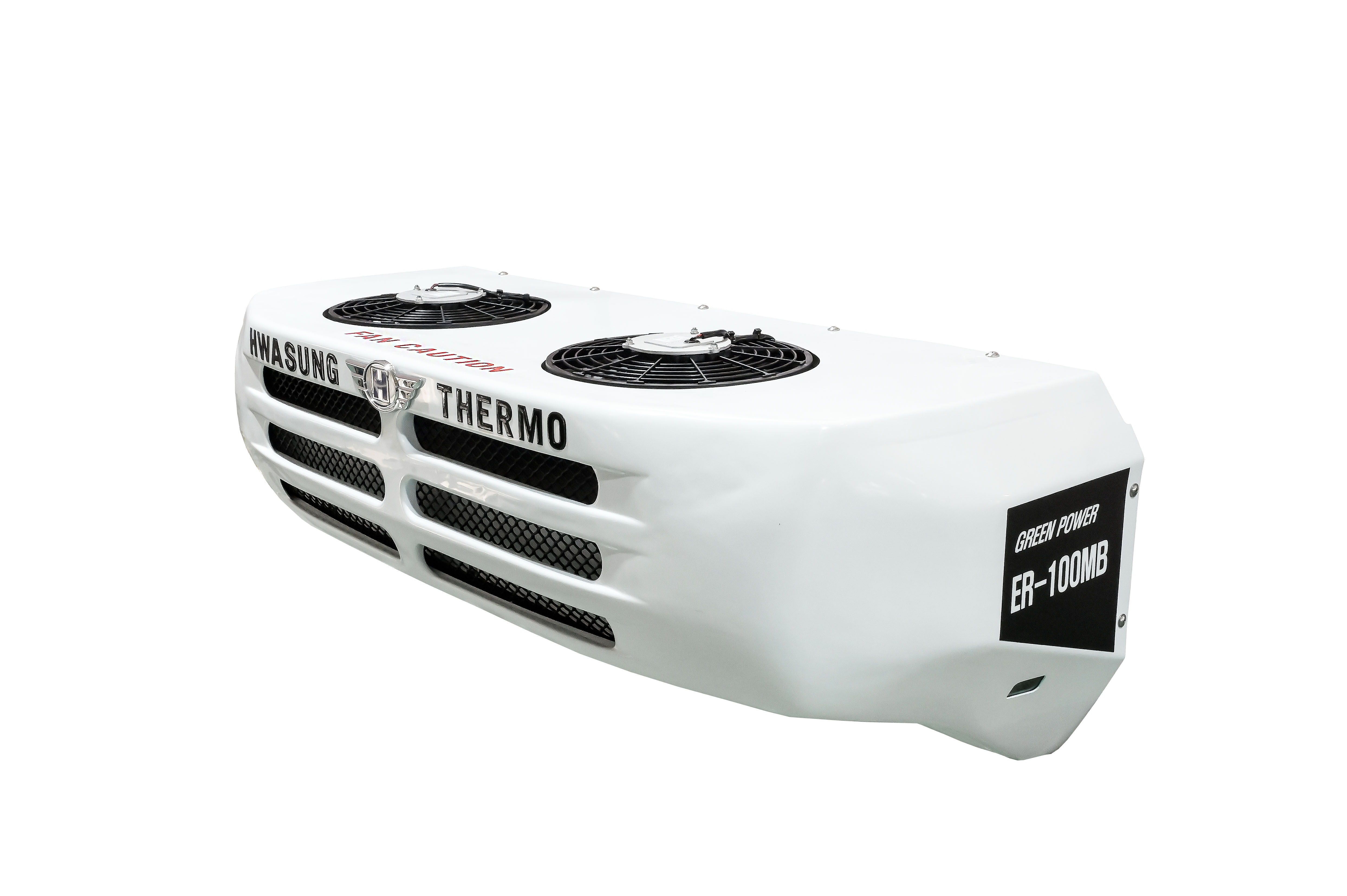

| ER-100MB electric refrigerator with a dual-cycle system |
| Designed to match individual operational systems for energy savings and maximum efficiency. |
| Next-generation rechargeable lithium-ion battery-powered refrigeration unit for trucks |
| * Operating time | * Single-cycle refrigeration system |
| 24V x 4000W = 9600W , 950W = 10.105 (about 10hours) |
| * Dual-cycle refrigeration system for freezing |
| 24V x 4000W = 9600W , 1900W = 5.052 (about 5hours) |
| * Lithium-ion battery pack refrigeration monoblock system (rechargeable type) |
| Cooling capacity | ER-100 MB |
| Road |
| 30°C(86°F) Ambient | R-404A | ˚C | watt |
| 1.7 | 3,200 |
| -18 | 1,600 |
| Power (Lithium-ion battery) | Lithium-ion battery 24V / 4000W |
| Refrigerant | R-404A , 2KG (1kg x 2 system) |
| Voltage | 24V |
| Power Consumption | 1cycle / 38 AMP. |
| 2cycles / 76 AMP. |
| Defrost | Hot gas |
| DC compressor | Masterflux BLDC compressor |
| 16.1CC x 2 sets ( 2 cycles) |
| Size (LxWxH) / mm | MB series | 1,416 X 663 X 520 (LxWxH)mm |
| Weight / kg | 163KG |
| Controller | 105x75x48 (LxWxH)mm |
